Video Inserter & Touch Interface - Volkswagen RCD510 DELPHI (60 PIN)

Ref: VIT-RCD510-D
Availability:



Shipped in:

6-10 days.

259€
(21% VAT inc.)


 Unit/s


Description

  • This interface allows to integrate external multimedia devices' image into your RCD510 device
  • In case the external device has "touch functions", you can manage them from the RCD510, with no need of modifying its monitor
  • With this interface, the source changing is possible to be done from the RCD510 *, in addition to other possibilities

 Car compatibility:

  • DELPHI RCD510 equipped vehicles. 60 PIN monitor's connector

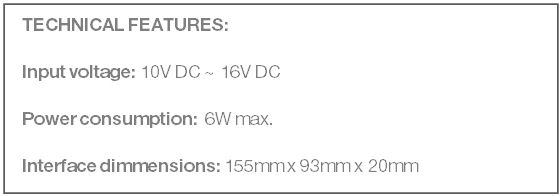

Technical specifications:

Inputs:

  • 1x RGB (navigation module, GPS Box or similar)
  • 3x AV (NTSC and PAL)
  • 1x CVBS (for Rear View Camera)
  • 1x Connection for the vehicle’s monitor

Outputs:

  • 1x AV (audio and video)

* Source changing:

  • RCD510's "TIM" button (needs soldering)

  • External switch (included)

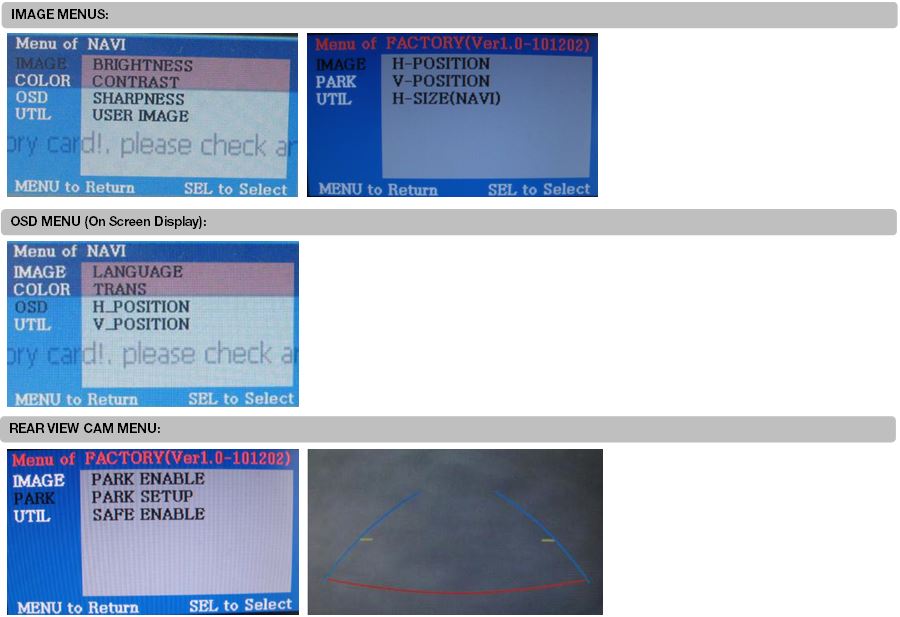

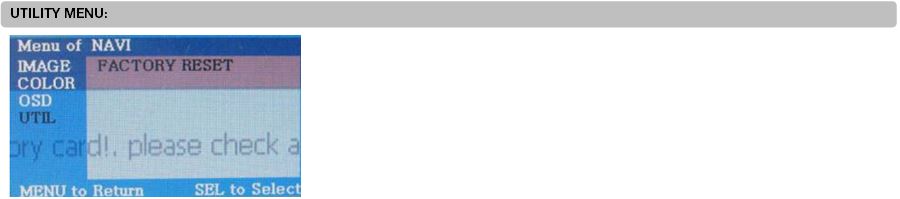

Interface's available menus:


Notes

  • For installing this interface you must disensamble the RCD510's display
  • This Multimedia Interface only allows video signal integration/switching; for audio signal integration you have to connect your device’s (DVD, TV Tuner, Navigation…) audio outputs to the vehicle’s AUX-IN input or installing our audio integration voice modules. Making this procedure your audio signal will be reproduced in your vehicle’s speakers
